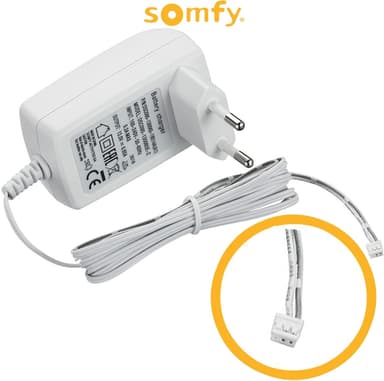

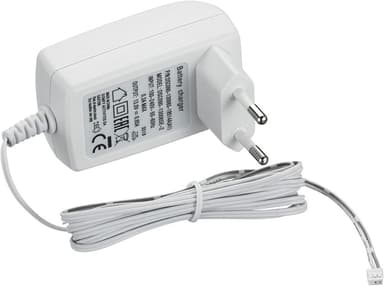

The Somfy 9021028 charger represents a meticulously engineered power solution for specialized Somfy WireFree V2 Li-ion motors. Electrically, its input stage is designed for global compatibility, accepting a broad 100V-240V AC range at 50/60 Hz, indicative of a switching mode power supply (SMPS) architecture that provides high efficiency and stable voltage conversion. The output stage delivers a precise 13V DC at 650mA, optimized for 12V nominal Li-ion battery packs. This voltage level is crucial for effective Li-ion charging, typically reaching a peak cell voltage of 4.2V per cell (for a 3-cell series configuration, 3x4.2V = 12.6V, with 13V providing the necessary headroom for impedance and cable losses, and ensuring full charge).
The charging algorithm employed is a 2-stage Constant Current/Constant Voltage (CC/CV) profile, a cornerstone of Li-ion battery charging. Initially, in the Constant Current (CC) phase, the charger supplies a steady 650mA until the battery voltage reaches approximately 12.6V-13V. Subsequently, it transitions to the Constant Voltage (CV) phase, maintaining 13V while the current gradually tapers off as the battery approaches its full State of Charge (100% SOC). This precise control prevents overcharging and extends battery cycle life.
Thermal management in the 9021028 is achieved through passive, fan-less cooling. Given its compact plug-in brick form factor and 8.45W power rating, this implies efficient internal design with low heat dissipation, robust component selection, and potentially optimized PCB layout for natural convection. The inclusion of over-temperature protection is a critical safeguard, triggering shutdown if internal temperatures exceed safe operating limits, preventing thermal runaway or component damage.

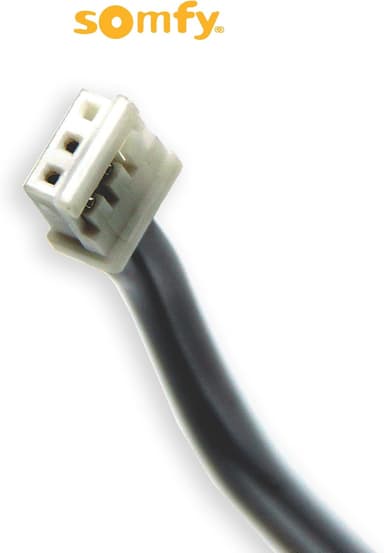

Comprehensive protection features define the charger's reliability: over-voltage and under-voltage protection safeguard the output from fluctuating grid conditions; over-current protection prevents damage from excessive load; and short-circuit protection ensures safety during inadvertent output terminal contact. While reverse polarity protection is not explicitly listed, electrical isolation ensures user safety from input-to-output voltage hazards, reinforcing its CE compliance. The proprietary 3-pin connector acts as an integral keying mechanism, preventing incorrect connection and ensuring system integrity. The combination of precise electrical characteristics, a proven charging algorithm, and robust protection protocols makes the Somfy 9021028 a highly reliable and safe charging solution for its designated application.
