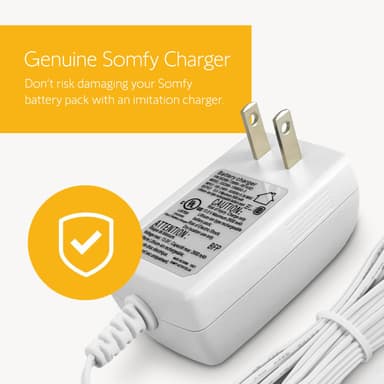

The Somfy 9025166 exemplifies a focused and robust power delivery architecture for its intended specialized application. Its electrical design centers around a universal AC-DC conversion stage, accepting a broad 100V-240V AC, 50/60 Hz single-phase input. This wide operating range, coupled with its compact plug-in form factor, enables global deployment without requiring voltage transformers. The output stage provides a meticulously regulated 13V DC at 650mA, equating to an 8.45W rated power. This voltage is specifically tailored for 12V nominal Li-Ion battery packs, likely comprising 3 series cells (3S) with a cell termination voltage of approximately 4.33V, a custom tuning for Somfy's proprietary V2 Li-ion chemistry, diverging slightly from the more common 4.2V/cell termination. The proprietary 3-pin output connector is a critical engineering decision, ensuring compatibility exclusively with Somfy V2 WireFree motors and external battery packs, thereby mitigating risks associated with incorrect charger pairing or generic power supplies.
**Charging Algorithm & Performance:** The 9025166 employs a conventional yet effective 2-stage Constant Current / Constant Voltage (CC/CV) charging algorithm. During the Constant Current (CC) phase, the charger delivers a steady 650mA until the battery voltage reaches 13V. Subsequently, the Constant Voltage (CV) phase commences, where the voltage is held at 13V, and the current gradually tapers off as the battery approaches full capacity (100% SOC). The estimated 8-hour charge time for a fully drained battery highlights a conservative charging rate, which inherently promotes longer battery cycle life and reduces thermal stress on the cells. This design choice, in the absence of fast charging or equalization features, prioritizes long-term battery health and reliability over rapid replenishment.
**Thermal Management:** Thermal management is achieved entirely through passive cooling (fan-less design). The low-rated power output of 8.45W generates minimal heat, making passive convection and radiation through its flame-retardant plastic enclosure entirely sufficient for maintaining safe operating temperatures. This absence of active cooling components enhances reliability by eliminating moving parts prone to wear and tear, and ensures silent operation, a crucial factor for its indoor application with motorized window treatments. Integrated over-temperature protection provides an essential failsafe, shutting down the unit if internal temperatures exceed safe thresholds.
**Protection Features:** The charger incorporates a comprehensive suite of electrical protection mechanisms vital for safety and durability. These include Over Voltage Protection (OVP), Under Voltage Protection (UVP) on the output, Over Current Protection (OCP) to prevent excessive current draw, Short Circuit Protection (SCP) to safeguard against output shorts, and Over Temperature Protection (OTP). While reverse polarity protection is not explicitly listed, the proprietary connector design inherently reduces the likelihood of incorrect polarity insertion. Electrical isolation is confirmed, further enhancing user safety. These features collectively ensure the longevity of both the charger and the connected battery pack, preventing catastrophic failures and maintaining system integrity in residential and light commercial environments.
