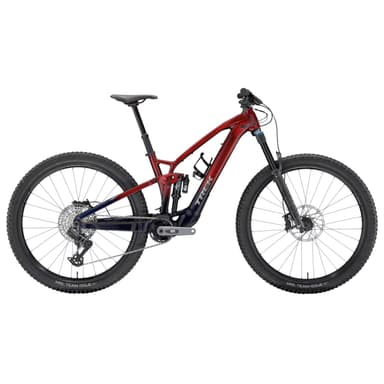

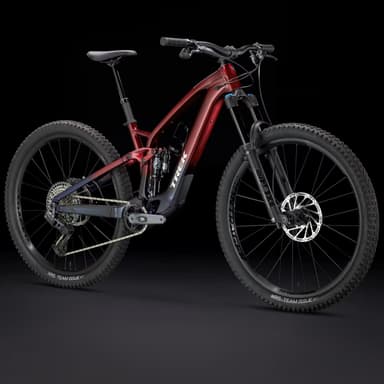

The Trek Fuel EXe 8 represents a sophisticated fusion of lightweight carbon chassis design and advanced electric drive system integration, meticulously engineered for high-performance trail riding. Its foundation, the OCLV Mountain Carbon frame, leverages proprietary layup schedules to achieve an exceptional strength-to-weight ratio, contributing significantly to the bike's segment-leading 18.5 kg mass. The Active Braking Pivot (ABP) full suspension architecture, providing 140mm of rear travel, is critical for maintaining suspension activity and traction even under heavy braking, a vital attribute for aggressive descents.
**Drive System Architecture**: The TQ HPR50 mid-drive motor, rated at 250W with 50Nm of peak torque, is the technological heart. Its 'Harmonic Pin Ring' technology is a departure from conventional planetary gear systems, resulting in a remarkably compact, lightweight, and virtually silent power unit. This system delivers power smoothly and naturally, closely mimicking an unassisted ride feel, which is crucial for maintaining rider confidence and control on technical trails. The integration of both cadence and torque sensors ensures instantaneous and proportional power assistance, optimizing rider input efficiency. The absence of a throttle and adherence to Class 1 e-bike regulations (32 km/h max assist) underscores its design intent as a pedal-assist mountain bike.
**Power Management & Efficiency**: The 360Wh Lithium-Ion battery, deeply integrated into the downtube, optimizes the bike's center of gravity for improved handling and offers robust protection from trail impacts. Its passive cooling design efficiently dissipates heat generated during discharge. The reported 80 km range in Eco Mode, for a 360Wh capacity, signifies a highly optimized system, considering the demands of a full-suspension MTB and its overall weight. The comprehensive Battery Management System (BMS) ensures longevity and safety, incorporating critical protections against over-voltage, under-voltage, over-current, short-circuit, over-temperature, and deep discharge, alongside active cell balancing. A 3-hour charge time highlights efficient power replenishment.

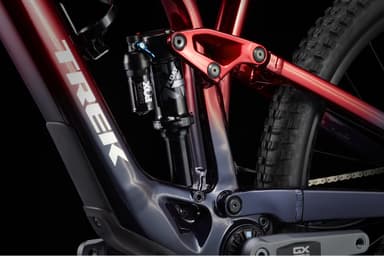

**Chassis Dynamics & Suspension**: The synergy between the OCLV Carbon frame and the RockShox suspension components is paramount. The RockShox 35 Gold RL fork with 150mm travel effectively manages front-end impacts, while the RockShox Deluxe Select+ rear shock with 140mm travel, acting through the ABP linkage, ensures consistent traction and compliance. The choice of 29-inch wheels paired with 2.4-inch Bontrager SE5 Team Issue Tubeless tires maximizes roll-over capability on obstacles and provides substantial grip on varied terrain, reinforced by durable Bontrager Rapid Drive 108 double-wall alloy rims.
**Braking Performance**: The braking system features Shimano XT M8120 hydraulic disc brakes. The M8120 calipers, renowned for their 4-piston design, deliver formidable stopping power and precise modulation, essential for controlling speed on steep descents. The mixed rotor setup (203mm front, 180mm rear) optimizes heat dissipation where it's most needed (front) while reducing weight at the rear. The integrated motor cutoff mechanism further enhances safety by disengaging power assist immediately upon brake actuation.
**Connectivity & Compliance**: The TQ Top Tube Integrated Display, coupled with Bluetooth connectivity and mobile app control, provides a streamlined user interface for monitoring ride data and customizing assist modes. The support for Over-the-Air (OTA) firmware updates ensures the e-bike's electronics remain current and optimized. Adherence to UL 2849, CE Marking, and EN15194 safety standards underscores Trek's commitment to electrical and mechanical integrity, providing a high level of assurance in the vehicle's design and operation, complemented by its water-resistant design.
