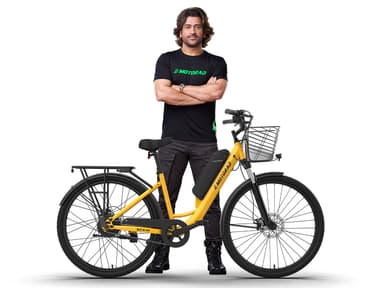

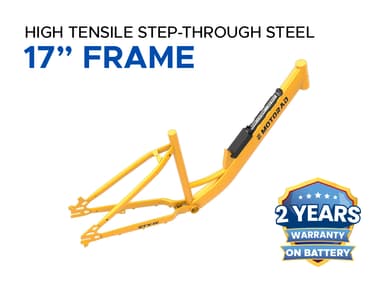

EMotorad ST-X: Engineering Analysis of its Urban Electric Drivetrain and Ergonomics

The EMotorad ST-X presents a meticulously engineered solution for urban e-mobility, balancing cost-effectiveness with functional performance. Motor & Drivetrain Architecture: At its core is a 250W BLDC rear hub motor, a prevalent choice for entry-to-mid level electric cycles due to its simplicity, reliability, and cost-efficiency. While specific rated and peak torque figures are not provided, the 250W continuous power output is compliant with Indian electric bicycle regulations and sufficient to propel a 100 kg payload up to 25 km/h. The absence of gearing within the motor itself simplifies design, but the integration with a 7-speed Shimano chain drive and thumb shifter is crucial. This mechanical gearing provides the necessary torque multiplication for uphill gradients and efficient cadence management across varying terrains, compensating for the fixed single-speed nature of the hub motor. The cadence sensor-based pedal assist ensures smooth power engagement, offering five distinct levels to tailor assistance to rider effort, supplemented by a full throttle for on-demand power. The motor's air-cooled design relies on natural convection, suitable for its urban application profile. Battery System & Range Efficiency: The energy storage unit is a 36V, 7.65Ah Lithium-Ion battery, translating to 275.4Wh of usable energy. Its downtube mounting improves the cycle's center of gravity, enhancing stability and handling. The removable design is a significant ergonomic advantage, facilitating convenient charging in diverse environments. Crucially, the battery incorporates a robust Battery Management System (BMS) with cell balancing and multiple protection features: over-voltage, under-voltage, over-current, short-circuit, over-temperature, and deep discharge protection. These safety mechanisms are vital for prolonging battery cycle life and ensuring operational safety. With an estimated range of 30-35 km, the energy consumption calculates to approximately 7.87-9.18 Wh/km. This efficiency is commendable for an urban e-bike, reflecting a balanced motor-to-battery pairing and aerodynamic design considerations, despite the lack of regenerative braking. Chassis Dynamics & Suspension: The chassis is constructed from High Tensile Steel, chosen for its inherent strength, durability, and cost-effectiveness. While heavier than aluminum alloys, the overall vehicle weight of 20 kg is competitive within the urban e-cycle segment, contributing to stability. The step-through frame design significantly enhances accessibility, making it suitable for a wider demographic of riders and for frequent stop-and-go urban traffic. Front suspension is provided by a telescopic fork with 100mm of travel. This generous travel is well-suited for absorbing shocks and vibrations from typical urban imperfections like potholes and uneven surfaces, significantly improving rider comfort, control, and reducing fatigue over longer commutes. Braking System: The EMotorad ST-X employs a dual disc braking system on both the front and rear wheels. Mechanical disc brakes offer superior stopping power and consistency compared to rim brakes, particularly in wet conditions, a critical safety feature for urban environments. The integration of a motor cutoff switch upon brake engagement is a standard safety protocol, instantly disengaging power to prevent unintended acceleration and improve stopping distances. While not hydraulic or featuring regenerative capabilities, this setup is robust and effective for the cycle's maximum speed and payload capacity. Thermal Management & Safety: The motor employs passive air cooling, standard for its power class. The battery is also passively cooled, relying on ambient air. The comprehensive suite of electrical protection features (over/under voltage, over-current, short-circuit, over-temperature, deep discharge) integrated into the BMS ensures component longevity and user safety. The BIS certification further confirms adherence to national safety and quality standards, instilling confidence in its electrical integrity and overall construction.
