EMotorad X1 Electric Cycle: Integrated Power-Assist System for Urban E-Mobility

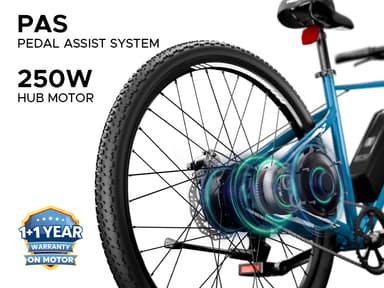

The EMotorad X1 presents a focused engineering solution for urban electric mobility, prioritizing robustness and functional efficiency. Its 18-inch diamond frame, constructed from high-tensile steel, serves as a structurally sound chassis, designed to withstand the stresses of urban use and support a maximum payload of 100 kg. This material choice provides a balance of strength and cost-effectiveness, although it contributes to an unstated but expected moderate overall vehicle weight. The frame's geometry, coupled with an adjustable seat, promotes an ergonomic riding posture suitable for commuting. At the core of its electric propulsion system is a 250W BLDC (Brushless DC) rear hub motor. While specific rated torque values are not provided, the motor's power output, in conjunction with the single-speed drivetrain and 5-level pedal assist (cadence sensor-based), is engineered to provide adequate propulsion up to 25 km/h for flat to moderately inclined urban terrains. The motor's Hall sensor integration ensures precise control of commutation sequences, translating into smooth acceleration and a responsive feel, critical for city riding. Air cooling for the motor indicates a design optimized for its power density and duty cycle, preventing overheating under typical urban stop-and-go conditions. The energy storage system comprises a 36V, 7.65Ah Lithium-Ion battery, yielding a total energy capacity of 275.4Wh. This battery is strategically integrated into the downtube, contributing to a lower center of gravity for enhanced stability and handling dynamics. The estimated 35 km range suggests an average energy consumption of approximately 7.87 Wh/km (275.4 Wh / 35 km), indicative of a well-optimized system for urban travel given the 250W motor and potential rider input. The sophisticated Battery Management System (BMS) is a crucial component, providing critical protections (over/under voltage, over-current, short-circuit, over-temperature, deep discharge) and cell balancing, which are vital for prolonging battery lifespan and ensuring safe operation. Passive cooling of the battery is an appropriate thermal management strategy for this capacity and application. Braking performance is managed by mechanical disc brakes on both front and rear wheels. This setup offers superior stopping power and consistency compared to rim brakes, particularly in varied weather conditions. A key safety feature is the motor cut-off switch, which immediately disengages the motor upon brake actuation, preventing unintended power delivery and ensuring precise control. Suspension dynamics are addressed by a front telescopic fork with 100mm of travel, significantly improving ride comfort by isolating the rider from road vibrations and impacts, a common challenge in urban infrastructure. The absence of rear suspension implies the design focuses on simplicity, weight reduction, and efficiency for paved surfaces, while the 27.5-inch wheels with aluminium alloy rims provide a good balance of agility and stability. Electrically, the EMotorad X1 benefits from BIS certification, ensuring compliance with relevant Indian safety standards, and features essential electrical isolation. The inclusion of an LED battery indicator for SoC provides basic but sufficient operational feedback to the rider, aligning with the product's utilitarian design philosophy. The overall architecture reflects a pragmatic engineering approach, providing essential electric assist functionalities within a robust and reliable platform for its target urban commuter segment.
