Grin Technologies Cycle Satiator 48V 8A: Advanced Universal Programmable Power Supply for E-Mobility Battery Systems

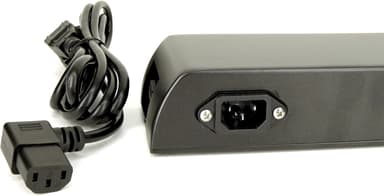

The Grin Technologies Cycle Satiator 48V 8A represents a pinnacle in intelligent battery charging infrastructure for light electric vehicles, distinguished by its highly configurable electrical architecture and robust thermal management. Electrical Architecture and Output Performance: The charger accepts a wide input voltage range of 110V to 240V AC, ensuring global compatibility without the need for external converters. Its single-phase operation and IEC C14 inlet provide standard integration. The core innovation lies in its highly programmable DC output: capable of delivering up to 63V DC and 8A (7A for 48V nominal packs), achieving a rated power output of 360W. This granular control over both voltage and current allows precise adaptation to various battery pack configurations and chemistries. The 95% charging efficiency at full load is a critical metric, minimizing energy loss as heat and maximizing power transfer to the battery, which directly contributes to its fan-less design. The robust output connector, a 3-Pin Male XLR (Singatron 2ct3002-w03400 waterproof DC jack), alongside a comprehensive suite of optional adapters, ensures wide physical compatibility with diverse battery systems. Sophisticated Charging Algorithm (CC/CV Multi-Profile): At its heart, the Cycle Satiator employs a fully programmable Constant Current/Constant Voltage (CC/CV) charging algorithm, the industry standard for safe and efficient lithium-ion battery charging, extended here to LiFePO4, NiMH, NiCad, and Lead Acid chemistries. This advanced algorithm supports multi-stage charging, allowing for tailored power delivery throughout the battery's charge cycle. Users can define up to 20 custom charging profiles directly on the device, configuring specific CC and CV stages, charge termination parameters (voltage cutoff, current cutoff, or timer), and even target State of Charge (SOC) levels (e.g., 80% for extended battery lifespan). This level of programmability allows for precise battery management, reducing stress on cells, preventing overcharging, and enabling fast charging or trickle charging as required. The ability to support BMS communication and smart battery protocols further enhances safety and data integrity. Advanced Thermal Management: A hallmark of the Satiator's engineering is its passive cooling system. Achieving 95% efficiency at full load inherently means only 5% of input power is dissipated as heat, significantly reducing the thermal load. This high efficiency eliminates the need for an active cooling fan, leading to several critical advantages: 1. Enhanced Reliability: No moving parts means reduced mechanical failure points, extending the charger's operational lifespan. 2. Silent Operation: Crucial for indoor use or during overnight charging. 3. Durability in Harsh Environments: The sealed, gasketted enclosure is designed to protect internal components from dust and moisture (water resistance confirmed), and the absence of a fan removes a common ingress point for contaminants. This makes it suitable for outdoor and on-board installation. Comprehensive Protection Features: Safety is meticulously engineered into the Cycle Satiator. The unit incorporates a robust array of protection features to safeguard both the charger and the connected battery: * Over-Voltage Protection (OVP): Prevents charging beyond the maximum safe voltage, critical for battery longevity. * Under-Voltage Protection (UVP): While primarily a battery-side protection, the charger's programmability ensures it operates within safe input/output voltage windows. * Over-Current Protection (OCP): Limits the output current to prevent damage from excessive load or internal faults. * Short-Circuit Protection (SCP): Immediately cuts power in the event of an output short, preventing catastrophic failure. * Over-Temperature Protection (OTP): Monitors internal temperatures and reduces power or shuts down if safe limits are exceeded, especially crucial for a passively cooled device. * Output Open Circuit Protection: Safely manages the output when no load is connected. * Waterproof Rating & Dust Resistance: The sealed enclosure protects against environmental ingress. * Electrical Isolation: Ensures safety by separating input and output circuits. These features collectively ensure a highly reliable and safe charging experience, minimizing risks associated with battery charging. Monitoring, Diagnostics, and Future-Proofing: The integrated LCD display (OLED) provides comprehensive real-time data, including voltage, current, energy delivered, and battery State of Charge (SOC). The data logging capability allows users to review charging history, which is invaluable for diagnostics and performance tracking. Furthermore, the inclusion of Over-The-Air (OTA) firmware updates ensures the charger remains current with the latest charging algorithms and features, extending its functional lifespan and adaptability to future battery technologies.
