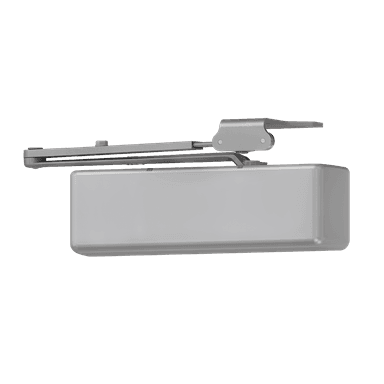

The LCN 4040XP exemplifies advanced hydraulic engineering tailored for high-demand door control. At its core, the unit utilizes a robust hydraulic system within its cast iron body. This system employs precisely engineered internal valving to meter hydraulic fluid, thus controlling the door's kinetic energy throughout its closing arc. Independent adjustment valves for closing speed, latching speed, and backcheck allow for highly precise door behavior calibration:
* **Closing Speed Control:** This valve regulates the flow of hydraulic fluid from the fully open position to approximately 10-15 degrees from closed, preventing uncontrolled door swing and ensuring a smooth, consistent closure rate.
* **Latching Speed Control:** Activated in the final 10-15 degrees of the door's travel, this critical adjustment allows for precise tuning of the closing force required to overcome latch friction, ensuring positive and secure latch engagement without excessive force or bounce.
* **Hydraulic Backcheck:** Engaging typically around 70-80 degrees of the door's opening cycle, the backcheck function provides a hydraulic cushion, resisting abusive or rapid opening. This protects the door, frame, and associated hardware from impact damage in environments prone to forceful door operation.
**ANSI/BHMA A156.4 Grade 1 Compliance:** This certification is a cornerstone of the 4040XP's engineering integrity. ANSI/BHMA A156.4 Grade 1 mandates rigorous performance criteria, including successful completion of 2 million test cycles. This extensive testing ensures exceptional durability, consistent operational forces, and resistance to environmental factors over a prolonged service life, validating its suitability for the most severe commercial and institutional applications. The 'high duty tested' rating further reinforces this commitment to long-term reliability.

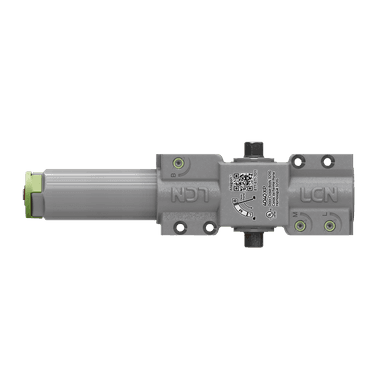

**Construction & Durability:** The foundational `cast iron body` provides superior structural rigidity and inherent resistance to fatigue, critical for a closer subjected to millions of cycles. The internal hydraulic fluid seals are engineered for sustained leak-free performance across varying temperatures, although specific operating temperature ranges are not provided. The `non-handed` design streamlines inventory and installation, enhancing operational efficiency. It is imperative to emphasize that the LCN 4040XP is **not fire-rated**. This technical specification means it cannot be installed on fire-rated door assemblies where compliance with fire and life safety codes (e.g., UL 10C, NFPA 80) is mandatory. Its design focus is on hydraulic control and durability in general commercial use, not fire compartmentation.
