Motovolt KIVO 24: Integrated EV Drivetrain and Optimized Urban Mobility Platform

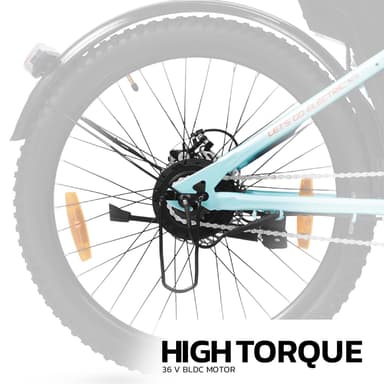

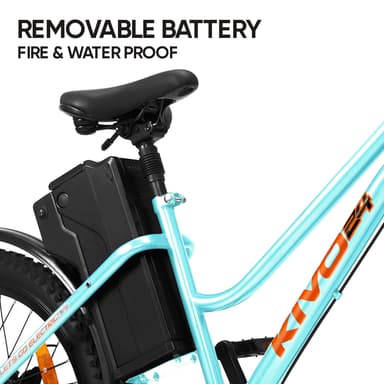

The Motovolt KIVO 24 represents a meticulously engineered urban electric cycle, balancing power, range, and structural integrity. At its core, the vehicle dynamics are governed by a robust 250W BLDC Rear Hub Motor, offering efficient and consistent propulsion. The motor's IP65 rating signifies its resilience against environmental ingress, critical for varied urban conditions. Torque delivery, while not numerically specified, is optimized through a cadence sensor and three pedal-assist levels, complemented by a direct throttle, allowing the system to achieve a commendable 7-degree climb grade, indicative of sufficient low-end power for city inclines. The drivetrain, a simplified single-speed chain drive, contributes to low maintenance and operational simplicity. Energy storage is managed by a highly reliable 36V Lithium Iron Phosphate (LFP/LiFePO4) battery system. LFP chemistry is chosen for its superior thermal stability, extended cycle life, and inherent safety characteristics over traditional lithium-ion variants. With options ranging from 216Wh (6Ah) to 576Wh (16Ah), the KIVO 24 offers substantial range flexibility, peaking at 105 km in PAS mode for the LR variant. The removable and lockable downtube mounting position optimizes weight distribution and enhances security/charging convenience. A sophisticated Battery Management System (BMS) with cell balancing is integrated, providing critical protection against over-voltage, under-voltage, over-current, short-circuit, over-temperature, and deep discharge, ensuring both battery longevity and rider safety. The battery enclosure itself boasts an IP67 rating, indicating exceptional dust and water immersion protection. Structural integrity is delivered by a TIG-welded High Tensile Steel frame, designed as a step-through for universal accessibility. While the 27 kg weight is average for an e-cycle, the choice of steel provides durability. Ride comfort is enhanced by a Front Spring Fork suspension, mitigating impacts from urban irregularities. The 24-inch spoke alloy wheels, paired with 2.1-inch puncture-resistant nylon tires, offer a balance of agility and durability, reducing the likelihood of flats. The braking system features reliable mechanical disc brakes on both front and rear, crucially integrated with a motor cutoff mechanism, which immediately disengages power upon brake application, significantly enhancing rider safety and control. The integrated smart features including Bluetooth, mobile app control, and GPS, along with remote diagnostics capabilities, underline its status as a connected and intelligent urban mobility platform.
