Ninety One Z2 27.5T Electric Cycle: Optimized 250W BLDC Drivetrain & 280.8Wh Battery Architecture

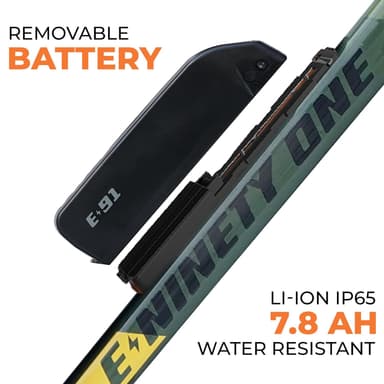

The Ninety One Z2 27.5T presents a well-integrated electric propulsion architecture for its designated application. The electrical system centers around a 36V nominal voltage, a prevalent and efficient standard for light electric vehicles, coupled with a 7.8Ah (280.8Wh) Lithium-Ion battery. The downtube mounting ensures a low center of gravity, enhancing stability and handling dynamics. Critical to battery longevity and safety is the integrated BMS, which provides active cell balancing and a suite of protective functions: over/under voltage, over-current, short-circuit, over-temperature, and deep discharge prevention. This robust protection scheme is paramount for Li-Ion chemistry. The BLDC Speevo Rear Hub Motor, rated at 250W, is a regulation-compliant choice for Indian markets, offering efficient power delivery. The IP65 ingress protection rating for the motor and enclosure signifies high resilience against dust and water, extending its operational envelope across varied environmental conditions. The inclusion of a Hall sensor ensures precise motor commutation, contributing to smoother power application and enhanced motor efficiency. The mechanical disc brake system is equipped with a motor cut-off switch, an essential safety feature that immediately disengages power when brakes are applied, preventing unintended acceleration and reducing stopping distances. From a drivetrain architecture perspective, the 250W BLDC motor's 42Nm peak torque is noteworthy, providing ample thrust for conquering inclines and accelerating briskly within its 25 km/h speed limit. The single-speed chain drive simplifies the mechanical system, reducing maintenance requirements and offering direct power transfer, albeit at the expense of gear ratio versatility on extremely varied topography. The 5-level pedal assist system, combined with a cadence sensor, offers intuitive and adjustable power augmentation, while the throttle provides immediate, unassisted propulsion. This combination caters to both assisted pedaling and pure electric drive modes. In terms of frame structural integrity and ride dynamics, the 17-inch Diamond frame, constructed from Hi Tensile Steel, offers a robust and durable platform. While heavier than aluminum, steel frames are known for their resilience and ability to absorb road vibrations, contributing to a more comfortable ride. The 91 Tuff Shox front suspension with 80mm of travel effectively mitigates impacts from uneven surfaces, enhancing rider comfort and control, particularly important for urban environments with varying road quality or light off-road excursions. The 27.5-inch wheels, paired with 2.1-inch Hi-Traction Nylon tubed tires and reinforced double-wall alloy rims, strike an optimal balance between agility and stability. The choice of mechanical disc brakes, sourced from 91 Tuff Shox, provides superior stopping performance compared to rim brakes, especially in wet conditions, thereby augmenting overall safety and control.
