Ninety One Z4 27.5T: Engineered Performance with a 250W BLDC Powertrain and Robust 6061 Alloy Chassis

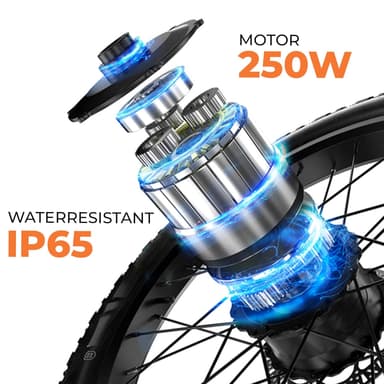

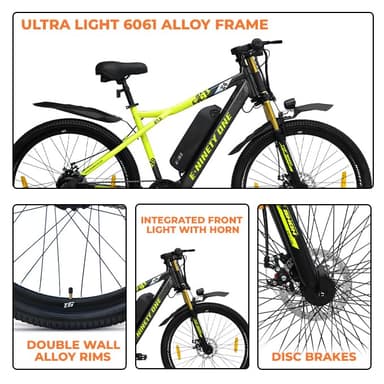

The Ninety One Z4 27.5T represents a robust engineering solution for accessible electric mobility, leveraging proven componentry within a pragmatic design philosophy. Frame Structural Integrity & Ergonomics: The chassis, constructed from Aluminium Alloy 6061 and precision-fabricated with robotic TIG welding, achieves an optimal balance of rigidity and lightweight performance. This fabrication method minimizes potential stress points and ensures consistent weld quality, contributing to the frame's lifetime warranty. The 18-inch diamond frame geometry is tailored to provide a comfortable yet assertive riding posture, suitable for varied applications from urban commuting to light trail riding. The inclusion of an adjustable seat post allows for basic rider customization, though the fixed handlebar position prioritizes a consistent control feel. Electronics & Power System Architecture: At the core, the 36V nominal voltage system drives a 250W BLDC (Brushless DC) rear hub motor. The BLDC motor, chosen for its high efficiency and minimal maintenance requirements, operates with Hall sensors for precise commutation and smooth power delivery across the 5 pedal-assist levels. The motor's IP65 rating signifies robust ingress protection against dust and low-pressure water jets, ensuring reliability in diverse operational environments. The 13Ah (468Wh) Lithium-Ion battery is optimally mounted in the downtube, contributing to a lower center of gravity for enhanced stability and handling. The sophisticated Battery Management System (BMS) is critical, integrating comprehensive protection features (over-voltage, under-voltage, over-current, short-circuit, over-temperature, deep discharge) and cell balancing, which are fundamental to extending battery cycle life and ensuring operational safety. The passive cooling method for the battery and air cooling for the motor are adequate for the rated power output and design application, preventing thermal degradation under normal operating conditions. Drivetrain and Performance Dynamics: The single-speed chain drive simplifies the drivetrain, reducing complexity and maintenance. While lacking a multi-gear system, the 5-level pedal assist, coupled with full throttle support, effectively compensates, providing flexible power application for varied gradients and rider preferences. The cadence sensor detects pedaling motion to engage assist, offering a natural feel. The absence of a torque sensor implies a more direct, less nuanced power response, but maintains simplicity and cost-effectiveness. The maximum speed of 25 km/h adheres to Indian e-bike regulations, while the achievable range of 75 km+ (PAS) and 45 km+ (Throttle) from the 468Wh battery demonstrates respectable energy efficiency for its class. Suspension, Braking & User Interface: The 80mm travel Dual Crown Front Fork with golden stanchions provides significant front-end compliance, effectively mitigating road and trail imperfections, thereby enhancing rider comfort and control. The 27.5-inch wheels with 2.1-inch Hi-Traction Nylon tubed tires on double-wall alloy rims offer a balanced compromise between rolling efficiency and grip. The mechanical disc brakes on both wheels, complemented by a motor cutoff feature, provide consistent and reliable stopping power, a critical safety element that instantly disengages propulsion when braking is initiated. The IP66-rated LCD display provides essential telematics—speed, SOC, range, odometer, trip meter—in a durable, integrated unit, allowing riders to monitor key performance parameters effortlessly.
