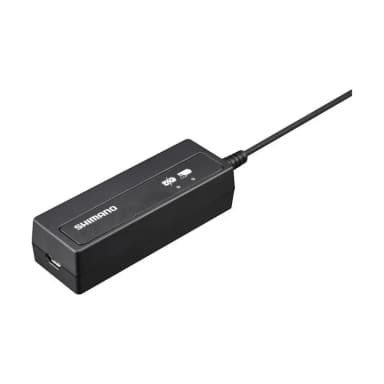

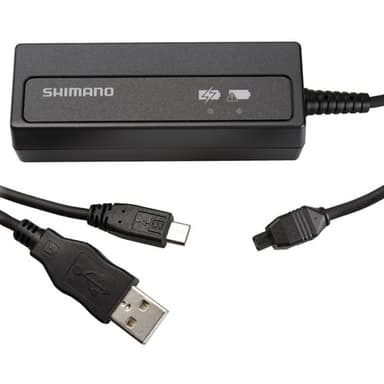

Shimano SM-BCR2 Di2 E-Tube USB Charging and Diagnostic Interface for Electronic Drivetrains

The Shimano SM-BCR2 operates as an intelligent power and data bridge within the intricate Di2 E-Tube ecosystem rather than a standalone battery charger. Its fundamental electrical architecture is engineered to accept a ubiquitous 5V DC input (minimum 1.0A) via a USB Type-A interface, effectively democratizing power sourcing from various USB power adapters or computer ports. Crucially, the SM-BCR2 does not directly output a regulated voltage or current to the battery. Instead, it serves as the conduit, feeding the 5V DC power into the Di2 E-Tube network. The sophisticated battery management system (BMS) integrated within the Shimano Di2 Li-Ion battery is solely responsible for executing the precise 2-stage Constant Current (CC) / Constant Voltage (CV) charging algorithm. This allows the BMS to intelligently control the charging profile, optimizing for battery health and longevity, ensuring a target 100% State of Charge (SOC). The SM-BCR2's role is to reliably provide the necessary upstream power and facilitate the communication protocols for this process. Thermal management in the SM-BCR2 is achieved through a passive, fan-less cooling method. Given its low power throughput and primary function as an interface, active cooling is unnecessary, contributing to its compact form factor and silent operation. Its plastic enclosure, while not specified for flame retardancy or advanced environmental resistance, is sufficient for typical indoor bicycle maintenance environments. From a protection standpoint, the SM-BCR2 unit itself is designed without internal over-voltage, under-voltage, over-current, short-circuit, or reverse-polarity protection. This design philosophy underscores the reliance on the robust protection mechanisms already embedded within the Di2 Li-Ion battery's internal BMS. The SM-BCR2 acts as a transparent, reliable data and power pass-through, simplifying its internal circuitry and enhancing its long-term stability within its defined operational parameters. Its smart connectivity features, including OTA firmware updates and remote diagnostics, are indicative of a forward-thinking design, allowing for future enhancements and advanced troubleshooting capabilities of the entire Di2 system, all orchestrated through this compact interface.
