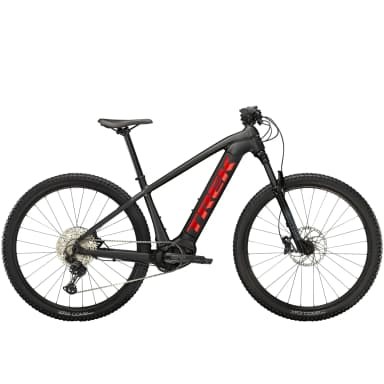

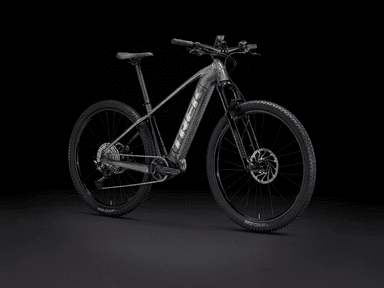

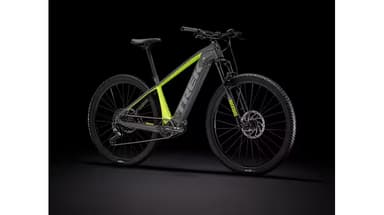

Trek Powerfly+ 5: Optimized Hardtail EV Design with Bosch Performance Line CX Integration

The Trek Powerfly+ 5's engineering is centered around the seamless integration of its electric drive system with a robust chassis for optimal trail performance. The Bosch Performance Line CX (Smart System) mid-drive motor, rated at 250W and delivering a peak torque of 85Nm, exemplifies precision EV engineering. Its mid-drive placement minimizes unsprung mass and improves overall vehicle dynamics, crucial for handling varied terrain. The geared motor design coupled with a 12-speed Shimano Deore M6100 (10-51T) drivetrain ensures efficient torque multiplication across a broad cadence range, allowing for sustained power delivery on challenging gradients. The motor's thermal management, via its magnesium housing and passive air cooling, maintains operational efficiency under strenuous conditions. The energy storage system, a 36V, 625Wh Bosch PowerTube RIB Lithium-Ion battery, is a cornerstone of the Powerfly+ 5's extended capability. Its downtube integration protects it from environmental elements and contributes to a lower center of gravity, enhancing stability. The sophisticated Battery Management System (BMS) provides comprehensive electronic protection suite, including over-voltage, under-voltage, over-current, short-circuit, over-temperature, and deep discharge safeguards, ensuring both operational safety and long-term battery health, critically validated by UL 2849 certification. The synergy between the motor's efficiency and the battery's capacity yields an impressive practical range of 80–120 km, with Eco mode extending to 120 km under ideal conditions. Chassis integrity and dynamic response are provided by the Alpha Platinum Aluminium hardtail frame, engineered with Boost148 spacing and a 12mm thru-axle for enhanced rigidity and precise tracking. The SR Suntour XCM 34 Coil fork, offering 100mm of travel, effectively mitigates trail impacts, maintaining front wheel contact and rider comfort without the complexity of a full-suspension system. Braking performance is achieved through Tektro HD-M275 hydraulic disc brakes featuring oversized 203mm heat-sink rotors, which are critical for robust heat dissipation and fade-resistant stopping power during aggressive descents. The integration of a motor cut-off switch on the brakes provides an immediate and definitive power disengagement, an essential safety feature for responsive control.
