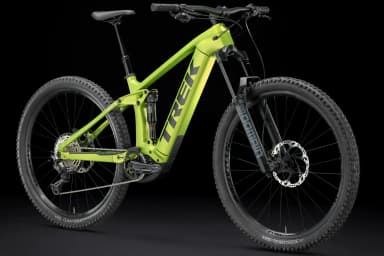

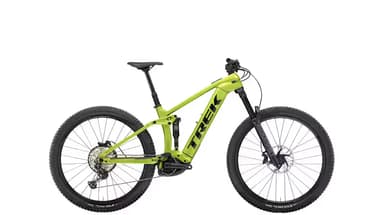

The Trek Rail 9.7's engineering prowess is evident in its holistic integration of power, chassis dynamics, and control systems. At its core, the Bosch Performance Line CX (Smart System) mid-drive motor delivers a highly responsive 85Nm of peak torque, optimized for rapid acceleration and sustained climbing performance in demanding off-road conditions. Its mid-drive placement ensures optimal weight distribution, contributing to the bike's balanced handling characteristics. The motor's Smart System integration allows for advanced diagnostics, personalized ride modes, and over-the-air (OTA) firmware updates via Bluetooth and mobile app connectivity, significantly enhancing the user experience and ensuring future-proofing.
Energy storage is managed by a 36V, 625Wh Bosch PowerTube Lithium-Ion battery, meticulously integrated into the OCLV Mountain Carbon downtube. This design choice not only protects the battery from trail impacts but also maintains the bike's sleek aesthetic. The RIB (Removable Integrated Battery) system facilitates convenient, tool-free battery removal for off-bike charging, and its lockable mechanism provides security. The embedded Battery Management System (BMS) ensures cell balancing, over/under-voltage, over-current, short-circuit, and over-temperature protection, extending battery longevity and operating within UL 2849 safety parameters. The 4.5-5 hour charging cycle via a 4A Bosch charger efficiently prepares the e-bike for its extensive 80-120 km range.
Chassis dynamics are built upon the robust yet lightweight OCLV Mountain Carbon full-suspension frame. The pairing of a Fox 36 Rhythm front fork (160mm travel) and a Fox Float DPX2 Performance rear shock (150mm travel) provides a highly tunable suspension platform, designed to absorb significant impacts and maintain tire contact over technical terrains, crucial for enduro and aggressive trail riding. The 29-inch wheelset, equipped with 2.5-inch Bontrager SE5 Team Issue tubeless-ready tires, offers a large contact patch for superior traction and rolling efficiency. The SRAM NX Eagle 12-speed drivetrain (10-50T) provides a wide gear range, allowing riders to effectively manage the motor's power output across varying gradients. The hydraulic disc braking system, with its 203mm front and 180mm rear rotors, ensures modulated, powerful stopping performance, a critical safety feature for high-speed descents and unpredictable trail conditions, further enhanced by the motor cut-off function upon brake engagement.
