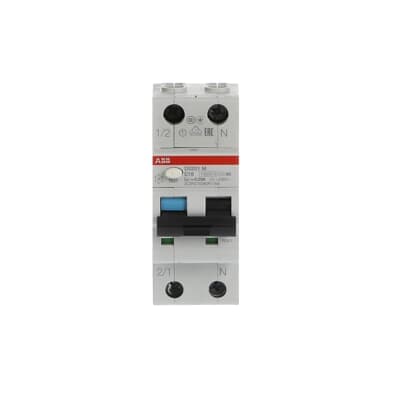

ABB 2P 16A 30mA RCBO (DS201-C16/0.03) –

03 is a premium 16A, 2P (1P+N) RCBO specifically engineered for residential final circuit safety.This Italian-made device combines earth leakage, overload, and short circuit protection into a compact 36mm width for standard 35mm DIN rail mounting.

Quick Answer

You should definitely buy the ABB DS201-C16/0.03 if prioritizing unmatched residential electrical safety. This 2P 16A, 30mA RCBO offers integrated earth leakage, overload, and short-circuit protection in a single compact unit. Its rapid 30mA trip sensitivity is vital for life safety, making it a robust choice for modern Indian homes seeking premium, reliable circuit protection.

✓Stops life-threatening leakage—the 30mA residual current sensitivity triggers an instantaneous shutdown during faults.
✓Integrated 6kA breaking capacity ensures the device safely interrupts high-magnitude short circuits without internal damage.
✓Guards Phase and Neutral lines—the 2P (1P+N) configuration features switched neutral protection for total circuit isolation.
✓Sized for 230V residential grids with a wide operational range of 180V to 264V to handle voltage fluctuations.
✓Compact 36mm width design saves 50% more space in your distribution board compared to separate MCB and RCCB units.
✓Passing the 850°C glow wire test, this halogen-free unit provides superior fire resistance in enclosed consumer units.

Homeowners and electricians prioritizing robust, all-in-one circuit protection should choose the ABB DS201-C16/0.03. This 16A RCBO integrates vital earth leakage, overload, and short-circuit safety, essential for secure modern Indian residential installations.

Product Overview
The ABB DS201-C16/0.03 is a premium 16A, 2P (1P+N) RCBO specifically engineered for residential final circuit safety. This Italian-made device combines earth leakage, overload, and short circuit protection into a compact 36mm width for standard 35mm DIN rail mounting. It serves as the primary safety gate, monitoring for current imbalances as low as 30mA to ensure instantaneous tripping during faults.

Related Products

Engineering Analysis
The 30mA sensitivity is vital for residential life safety because it trips the circuit in ≤300ms at 1x Idn, well before current can cause cardiac arrest. Its 6kA breaking capacity and 10kA conditional short circuit rating provide a robust buffer against high-energy thermal events in urban power grids. Furthermore, the C-curve tripping characteristic is optimized for 16A loads, allowing for standard appliance inrush currents without nuisance tripping.
