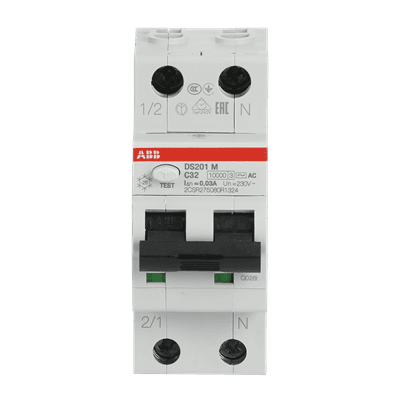

ABB 2P 32A 30mA RCBO (DS201-C32/0.03) – residential

The ABB DS201-C32/0.03 is a 32A, 30mA Type AC RCBO designed specifically for residential final circuit protection. This 2-pole (1P+N) device integrates earth leakage, overload, and short-circuit protection into a space-saving 36mm unit. It operates on a 230V range and carries an IP20 degree of protection for safe installation in indoor enclosures.

Quick Answer

You should prioritize the ABB DS201-C32/0.03 for 32A kitchen or AC circuits that require uncompromising earth-leakage and overcurrent protection. Its 1P+N design and 6kA breaking capacity offer a more reliable, space-saving alternative to separate MCB and RCCB units in premium home installations.

✓Saves your life during ground faults — 30mA residual current sensitivity trips the circuit in under 300ms.
✓6kA breaking capacity provides robust protection against high-energy short circuit events in home networks.
✓Eliminates the need for a separate neutral link — 1P+N switched neutral design occupies just 2 DIN modules.
✓20,000 mechanical cycles of endurance ensure reliable operation for decades in residential environments.
✓Visual confirmation of fault status — built-in trip indicator and yellow test button simplify troubleshooting.
✓10kA conditional short circuit rating allows for safe coordination with upstream protective devices.

The ABB DS201-C32/0.03 is ideal for safeguarding 32A power outlets against fatal shocks and wiring fires. Opt for this if you value space-efficiency; otherwise, verify if your load requires a lower amperage rating for precision tripping.

Product Overview
The ABB DS201-C32/0.03 is a 32A, 30mA Type AC RCBO designed specifically for residential final circuit protection. This 2-pole (1P+N) device integrates earth leakage, overload, and short-circuit protection into a space-saving 36mm unit. It operates on a 230V range and carries an IP20 degree of protection for safe installation in indoor enclosures.

Related Products

Engineering Analysis
The 30mA sensitivity is calibrated for human safety, ensuring a trip time of ≤40ms at 5x rated residual current to prevent cardiac arrest. Its 6kA breaking capacity and Energy Limiting Class 3 rating minimize thermal stress on wires during short circuits, while the 1P+N design ensures the neutral is disconnected for absolute safety. A 10kA conditional short circuit rating provides robust coordination with upstream protective equipment.
